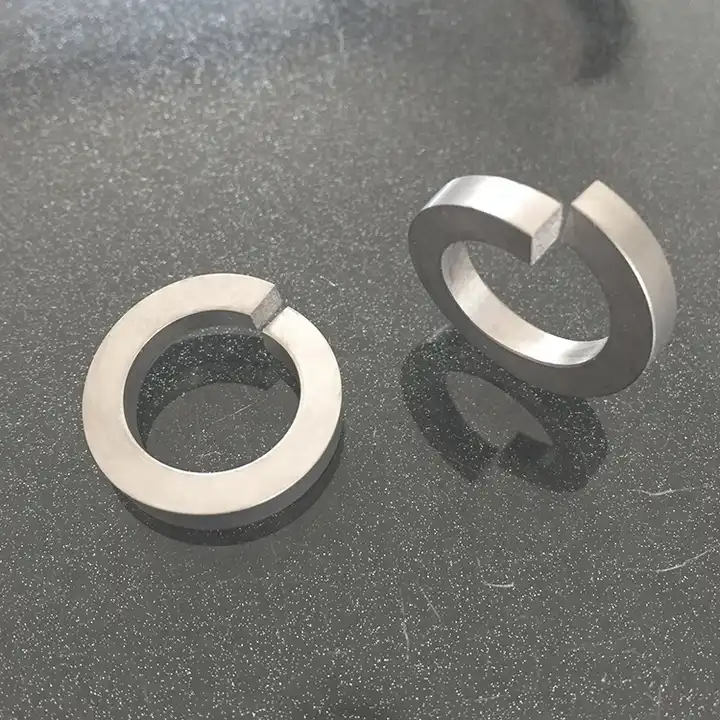

Titanium spring washers, also known as titanium split lock washers or split ring washers, are designed to reduce vibration and prevent parts from working loose. Unlike titanium flat washers, they have a slit in the washer that grips the nut and mounting surface when installed. Once fully tightened, the washer applies tension to the fastener, keeping it in locked position - a slight misalignment of the slit will show. Suitable for both static and dynamic loads - helps to hold the load in static applications and acts as a flexible spring in dynamic applications.
Physical properties of titanium
The material is titanium GR2 or GR5.
The specific gravity is about 60% of that of stainless steel.
Specific gravity: 4.51
Melting point: 1,668°C
Elastic modulus: 106 GPa
Thermal conductivity: 17.16W/(m·K)
Linear expansion coefficient: 8.4×10^(-6)K^(-1)
Resistivity: 0.55μΩ·m
Magnetic permeability: 1.0001μ (non-magnetic)
Application fields of Titanium alloy spring washer
Excellent chemical and seawater resistance.
The surface is specially chemically polished and brightened, cleanly packaged, oil-free, dust-free, and of clean specifications.
Lightweighting of automobiles, aircraft, space equipment, medical equipment, robots, etc. FPD manufacturing equipment, semiconductor manufacturing equipment, and electric power. Suitable for electronic equipment, marine equipment, electroplating equipment, etc.
Advantages of Titanium alloy spring washer
why choose our products
Titanium alloy spring washers are often used due to their light weight and high strength. They are also non-magnetic and have excellent chemical and corrosion resistance - suitable for use in marine environments. Standard material is titanium grade 2, various grades available to order. Other materials such as zirconium are also available. The standard inner diameters are currently 3.1 mm (M3) to 10.2 mm (M10), with square profiles in accordance with DIN 7980 and rectangular profiles in accordance with DIN 127.
Non-standard sizes, materials and finishes can be ordered as special products, including short run manufacturing, modifications and custom parts to drawings - minimum order quantities apply.
Why choose Titanium alloy spring washer?
The main function of spring washers
The most basic function of spring washers is to prevent loosening. That is, after the screws and bolts are tightened, force is applied to increase the friction between the screws and bolts and the material, thereby tightening the material during vibration and preventing the screws and bolts from loosening. Slotted hexagonal nuts are specially used with bolts with holes at the end of the screw. Insert the cotter pin from the slot of the nut into the hole of the screw to prevent the nut from loosening automatically. Mainly used in situations with vibrating loads or alternating loads.
Titanium alloy spring washer features
Titanium spring washers, designed to reduce vibration and prevent parts from loosening. Unlike titanium flat washers, they have a slit in the washer that grips the nut and mounting surface when installed. Once fully tightened, the washer applies tension to the fastener, keeping it locked in position - slight misalignment of the slit will be apparent.
our advantages
Yifang Titanium is a leading organization supplying Spring Lock Washer Fasteners to the clients. Titanium Spring Washers are manufactured using the highest quality material as per national and international market standards under the supervision of an experienced team. The product is rigorously checked by quality auditors based on well-defined parameters.
